Todas fabricadas em alumínio. Também dispomos de polias em Aço. Geometria dos dentes HTD. Tolerância de excentricidade é de 0,05mm para polias com diâmetros externos de 0 a 200 mm. Acima de 200 mm de diâmetro, acrescentar 0,005mm para cada 10mm. As polias padronizadas em nosso estoque somente possuem furo guia ou furo apontado, e não estão balanceadas. O balanceamento e acabamento final das polias ficam sob responsabilidade do comprador. Os furos apontados ou guias não estão centralizados com relação ao cubo. A centralização deve ser feita através dos dentes das polias. Nos reservamos-nos o direito de alterar o diâmetro do furo sem aviso prévio.

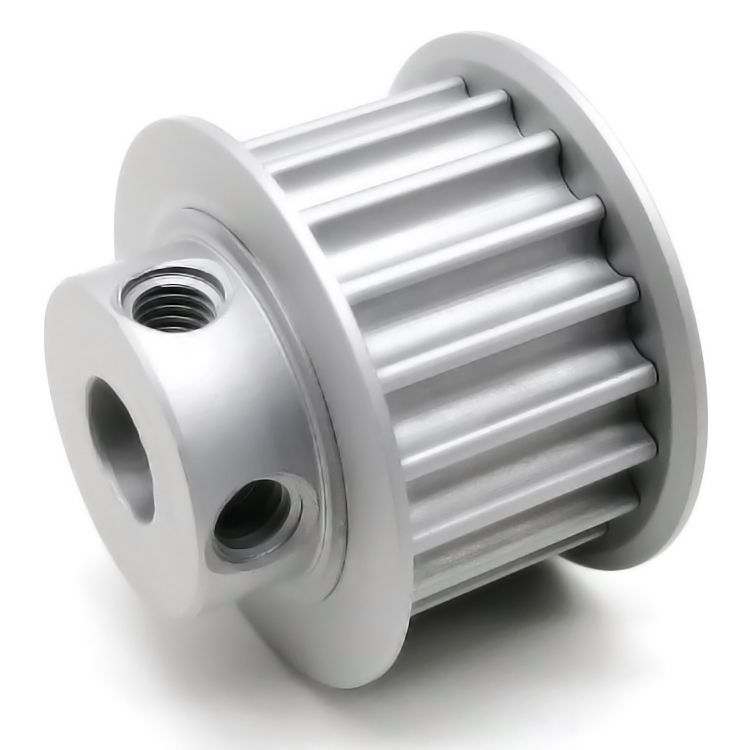

Imagem meramente ilustrativa*
| Referência da Polia |
Numero de Dentes | Tipo de Polia | Dia. Primitivo Ø Dp | Dia. Flanges Ø F | Dia. do Cubo Ø C |
9,0 | Peso Aprox. (g) | 15 | Peso Aprox. (g) | Furo Min. Ø | Furo Max. Ø | ||||||||||
| L1 | L2 | L1 | L2 | ||||||||||||||||||
| 10 5M | 10 | 6F | 15,91 | 20,0 | 10,0 | 14,5 | 20,0 | 7,0 | 20,0 | 26,0 | 8,0 | 4,8 | 6,0 | ||||||||
| 12 5M | 12 | 6F | 19,10 | 23,0 | 13,0 | 14,5 | 20,0 | 8,0 | 20,0 | 26,0 | 9,0 | 4,8 | 6,0 | ||||||||
| 14 5M | 14 | 6F | 22,29 | 26,0 | 14,0 | 14,5 | 20,0 | 9,0 | 20,0 | 26,0 | 10,0 | 6,0 | 9,0 | ||||||||
| 15 5M | 15 | 6F | 23,88 | 28,0 | 16,0 | 14,5 | 20,0 | 10,0 | 20,0 | 26,0 | 11,0 | 6,0 | 10,0 | ||||||||
| 16 5M | 16 | 6F | 25,47 | 30,0 | 17,0 | 14,5 | 20,0 | 11,0 | 20,0 | 26,0 | 12,0 | 6,0 | 11,0 | ||||||||
| 17 5M | 17 | 6F | 27,05 | 32,0 | 19,0 | 14,5 | 20,0 | 12,0 | 20,0 | 26,0 | 14,0 | 6,0 | 13,0 | ||||||||
| 18 5M | 18 | 6F | 28,64 | 33,0 | 20,0 | 14,5 | 20,0 | 14,0 | 20,0 | 26,0 | 15,0 | 6,0 | 14,0 | ||||||||
| 19 5M | 19 | 6F | 30,23 | 34,0 | 21,0 | 14,5 | 20,0 | 15,0 | 20,0 | 26,0 | 17,0 | 6,0 | 14,0 | ||||||||
| 20 5M | 20 | 6F | 31,83 | 36,0 | 23,0 | 14,5 | 20,0 | 17,0 | 20,0 | 27,0 | 18,0 | 6,0 | 15,0 | ||||||||
| 22 5M | 22 | 6F | 35,01 | 39,0 | 25,0 | 14,5 | 20,0 | 18,0 | 20,0 | 27,0 | 20,0 | 6,0 | 16,0 | ||||||||
| 24 5M | 24 | 6F | 38,19 | 42,0 | 27,0 | 14,5 | 20,0 | 20,0 | 20,0 | 27,0 | 30,0 | 6,0 | 17,0 | ||||||||
| 25 5M | 25 | 6F | 39,78 | 43,0 | 29,0 | 14,5 | 20,0 | 30,0 | 20,0 | 27,0 | 40,0 | 6,0 | 18,0 | ||||||||
| 26 5M | 26 | 6F | 41,38 | 45,0 | 29,0 | 14,5 | 20,0 | 35,0 | 20,0 | 27,0 | 45,0 | 6,0 | 18,0 | ||||||||
| 28 5M | 28 | 6F | 44,56 | 47,0 | 30,0 | 14,5 | 20,0 | 40,0 | 20,0 | 27,0 | 50,0 | 6,0 | 19,0 | ||||||||
| 30 5M | 30 | 6F | 47,74 | 51,0 | 34,0 | 14,5 | 20,0 | 50,0 | 20,0 | 27,0 | 60,0 | 6,0 | 21,0 | ||||||||
| 32 5M | 32 | 6F | 50,92 | 55,0 | 36,0 | 14,5 | 20,0 | 60,0 | 20,0 | 27,0 | 80,0 | 8,0 | 22,0 | ||||||||
| 34 5M | 34 | 6F | 54,11 | 61,0 | 36,0 | 14,5 | 20,0 | 80,0 | 20,0 | 27,0 | 90,0 | 8,0 | 22,0 | ||||||||
| 36 5M | 36 | 6F | 57,29 | 64,0 | 36,0 | 14,5 | 20,0 | 90,0 | 20,0 | 27,0 | 100,0 | 8,0 | 22,0 | ||||||||
| 38 5M | 38 | 6F | 60,47 | 66,0 | 36,0 | 14,5 | 20,0 | 100,0 | 20,0 | 27,0 | 120,0 | 8,0 | 22,0 | ||||||||
| 40 5M | 40 | 6F | 63,66 | 68,0 | 36,0 | 14,5 | 20,0 | 120,0 | 20,0 | 27,0 | 140,0 | 8,0 | 22,0 | ||||||||
| 44 5M | 44 | 6W | 70,02 | -- | 38,0 | 14,5 | 20,0 | 100,0 | 20,0 | 28,0 | 130,0 | 8,0 | 23,0 | ||||||||
| 48 5M | 48 | 6W | 76,39 | -- | 38,0 | 14,5 | 20,0 | 120,0 | 20,0 | 28,0 | 160,0 | 8,0 | 23,0 | ||||||||
| 50 5M | 50 | 6W | 79,57 | -- | 38,0 | 14,5 | 20,0 | 130,0 | 20,0 | 28,0 | 170,0 | 8,0 | 23,0 | ||||||||
| 52 5M | 52 | 6W | 82,76 | -- | 38,0 | 14,5 | 20,0 | 150,0 | 20,0 | 28,0 | 180,0 | 8,0 | 23,0 | ||||||||
| 56 5M | 56 | 6W | 89,12 | -- | 38,0 | 14,5 | 20,0 | 180,0 | 20,0 | 28,0 | 200,0 | 8,0 | 23,0 | ||||||||
| 60 5M | 60 | 6WR | 95,49 | -- | 40,0 | 14,5 | 20,0 | 200,0 | 20,0 | 28,0 | 220,0 | 10,0 | 25,0 | ||||||||
| 62 5M | 62 | 6WR | 98,67 | -- | 40,0 | 14,5 | 20,0 | 210,0 | 20,0 | 28,0 | 280,0 | 10,0 | 25,0 | ||||||||
| 72 5M | 72 | 6WR | 114,59 | -- | 45,0 | 14,5 | 20,0 | 240,0 | 20,0 | 28,0 | 300,0 | 10,0 | 30,0 | ||||||||
| 84 5M | 84 | 6WR | 133,68 | -- | 50,0 | 14,5 | 20,0 | 280,0 | 20,0 | 28,0 | 310,0 | 10,0 | 34,0 | ||||||||
| Referência da Polia | Numero de Dentes | Tipo de Polia | Dia. Primitivo Ø Dp | Dia. Flanges Ø F | Dia. do Cubo Ø C |
25 | Furo Min. Ø | Furo Max. Ø | Peso Aprox. (g) | |||||||||||
| L1 | L2 | |||||||||||||||||||
| 10 5M | 10 | 6F | 15,91 | 20,0 | 10,0 | 30,0 | 36,0 | 4,8 | 6,0 | 9,0 | ||||||||||
| 12 5M | 12 | 6F | 19,10 | 23,0 | 13,0 | 30,0 | 36,0 | 4,8 | 6,0 | 10,0 | ||||||||||
| 14 5M | 14 | 6F | 22,29 | 26,0 | 14,0 | 30,0 | 36,0 | 6,0 | 9,0 | 11,0 | ||||||||||
| 15 5M | 15 | 6F | 23,88 | 28,0 | 16,0 | 30,0 | 36,0 | 6,0 | 10,0 | 12,0 | ||||||||||
| 16 5M | 16 | 6F | 25,47 | 30,0 | 17,0 | 30,0 | 36,0 | 6,0 | 11,0 | 14,0 | ||||||||||
| 17 5M | 17 | 6F | 27,05 | 32,0 | 19,0 | 30,0 | 36,0 | 6,0 | 13,0 | 15,0 | ||||||||||
| 18 5M | 18 | 6F | 28,64 | 33,0 | 20,0 | 30,0 | 36,0 | 6,0 | 14,0 | 17,0 | ||||||||||
| 19 5M | 19 | 6F | 30,23 | 34,0 | 21,0 | 30,0 | 36,0 | 6,0 | 14,0 | 18,0 | ||||||||||
| 20 5M | 20 | 6F | 31,83 | 36,0 | 23,0 | 30,0 | 37,0 | 6,0 | 15,0 | 20,0 | ||||||||||
| 22 5M | 22 | 6F | 35,01 | 39,0 | 25,0 | 30,0 | 37,0 | 6,0 | 16,0 | 30,0 | ||||||||||
| 24 5M | 24 | 6F | 38,19 | 42,0 | 27,0 | 30,0 | 37,0 | 6,0 | 17,0 | 40,0 | ||||||||||
| 25 5M | 25 | 6F | 39,78 | 43,0 | 29,0 | 30,0 | 37,0 | 6,0 | 17,0 | 45,0 | ||||||||||
| 26 5M | 26 | 6F | 41,38 | 45,0 | 29,0 | 30,0 | 37,0 | 6,0 | 18,0 | 50,0 | ||||||||||
| 28 5M | 28 | 6F | 44,56 | 47,0 | 30,0 | 30,0 | 37,0 | 6,0 | 19,0 | 60,0 | ||||||||||
| 30 5M | 30 | 6F | 47,74 | 51,0 | 34,0 | 30,0 | 37,0 | 6,0 | 21,0 | 80,0 | ||||||||||
| 32 5M | 32 | 6F | 50,92 | 55,0 | 36,0 | 30,0 | 37,0 | 8,0 | 22,0 | 90,0 | ||||||||||
| 34 5M | 34 | 6F | 54,11 | 61,0 | 36,0 | 30,0 | 37,0 | 8,0 | 22,0 | 100,0 | ||||||||||
| 36 5M | 36 | 6F | 57,29 | 64,0 | 36,0 | 30,0 | 37,0 | 8,0 | 22,0 | 120,0 | ||||||||||
| 38 5M | 38 | 6F | 60,47 | 66,0 | 36,0 | 30,0 | 37,0 | 8,0 | 22,0 | 140,0 | ||||||||||
| 40 5M | 40 | 6F | 63,66 | 68,0 | 36,0 | 30,0 | 37,0 | 8,0 | 22,0 | 160,0 | ||||||||||
| 44 5M | 44 | 6W | 70,02 | -- | 38,0 | 30,0 | 38,0 | 8,0 | 23,0 | 140,0 | ||||||||||
| 48 5M | 48 | 6W | 76,39 | -- | 38,0 | 30,0 | 38,0 | 8,0 | 23,0 | 180,0 | ||||||||||
| 50 5M | 50 | 6W | 79,57 | -- | 38,0 | 30,0 | 38,0 | 8,0 | 23,0 | 200,0 | ||||||||||
| 52 5M | 52 | 6W | 82,76 | -- | 38,0 | 30,0 | 38,0 | 8,0 | 23,0 | 220,0 | ||||||||||
| 56 5M | 56 | 6W | 89,12 | -- | 38,0 | 30,0 | 38,0 | 8,0 | 23,0 | 240,0 | ||||||||||
| 60 5M | 60 | 6W | 95,49 | -- | 40,0 | 30,0 | 38,0 | 10,0 | 25,0 | 260,0 | ||||||||||
| 62 5M | 62 | 6W | 98,67 | -- | 40,0 | 30,0 | 38,0 | 10,0 | 25,0 | 300,0 | ||||||||||
| 72 5M | 72 | 6W | 114,59 | -- | 45,0 | 30,0 | 38,0 | 10,0 | 30,0 | 320,0 | ||||||||||
| 84 5M | 84 | 6W | 133,68 | -- | 50,0 | 30,0 | 38,0 | 10,0 | 34,0 | 340,0 | ||||||||||
